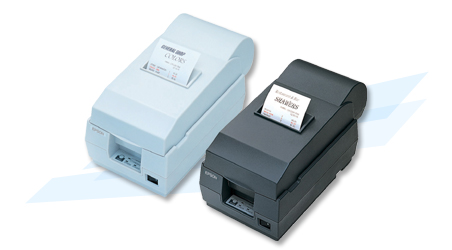

| TM-U200 Series |
| High Cost-Performance Printers |
| Small and Compact Design |
| Introducing the auto-cutter version of the TM-U200 series, the small, compact POS printer standard. The new TM-U200 series keeps such user-friendly
features as drop-in roll-paper loading and an auto-status back function. The auto-cutter enables receipts to be issued quickly and cleanly, making a favorable impression
on customers. Moreover, two-color printing, in black and red, further enhances the scope of applications . |
| |
| Fast, Lightweight & Rugged |
| Tough construction assures outstanding reliability. Fast 3.5 lps red/black printing for 40 column and 6.4 lps for 16 columns. |
| |
| Feature-Packed |
| Complete with ESC/POSR based command system for smooth operation. Also features Automatic Status Back for quick confirmation of printer
operation status, and semi-automatic paper loading. |
| |
| MODEL |
Standard device / unit |
Applications |
Type A
|
Take up / Automatic cutter |
Receipt & Journel Printer |
| Type B |
Automatic cutter |
Kitchen Receipt / ticket |
| Type D |
- |
Receipt |
| SPECIFICATION |
| Print method |
|
9-pin, serial impact dot matrix |
| Print font |
Font |
7 x 9 / 9 x 9 |
|
Column capacity (columns) |
40 / 42 or 33 / 35 |
|
Character size (mm) |
1.2 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H) |
|
Character set |
95 Alphanumeric, 32 International, 128 x 8 Graphic
Traditional / Simple Chinese, Thai, Japanese, Korean |
|
Characters per inch |
17.8 / 16 cpi, 14.5 / 13.3 cpi |
| Interfaces |
|
RS-232, Bi-directional parallel,
Dealer option: RS-485, USB, 10 Base T I/F |
| Data buffer |
|
1K bytes or 40 bytes |
| Print speed |
|
3.5 lps (40 columns, 16 cpi) / 6.4 lps (16 columns, 16 cpi) |
| Paper |
Dimensions (mm) |
Roll paper: 76.0 + 0.5(W) dia. 83.0 |
|
Thickness (mm) |
0.06 to 0.085 |
| COPY CAPABILITY |
|
A type: One original and two copies
B type: One original and one copy
D type: One original and two copies |
| Power |
|
AC adapter (included) |
| INKED RIBBON |
|
ERC-38 (Purple, Black, Black / Red) |
| RIBBON LIFE |
|
Purple: 4 x 106 characters, Black: 3 x 106 characters
B / R: 15 x 105 characters (Black), 75 x 104 characters (Red) |
| Power consumption |
|
Approx. 43 W |
| D.K.D.function |
|
2 drivers |
| Reliability |
|
MTBF 18 x 104 hours
MCBF 18 x 106 lines |
| Overall dimensions (mm) |
|
A type: 160 (W) x 295 (D) x 160 (H)
B type: 160 (W) x 248 (D) x 150 (H)
D type: 160 (W) x 248 (D) x 133 (H) |
| Mass (Approx.) |
|
A type: 2.5 kg, B type: 2.5 kg,
D type: 2.2 kg |
| EMC standards |
|
VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B |
| Power Supply |
|
Exclusive AC adapter (included) |
| FACTORY OPTIONS |
|
Near-end sensor |
| Safety standards |
|
UL / CSA / TUV (EN60950) |
|
|
