Visual Rewrite Cards

VISUAL CARD - expands usage opportunities, enhances image and offers low cost solution

This new technology allows information to be instantly visible on the card. Data, which was imbedded in the magnetic stripe is now humanly readable without the need for expensive LCD monitors and paper. The Visual card system has the ability to magnetically print threee lines of text at a high resolution making it easy to read. The System is a new concept which permits information to be conveniently available and will revolutionize the card system industry.

Principal Features

Durable:
Cards are constructed of durable plastic materials similar to those used in ATM and credit card applications.


Large Visible Display:
It will display alpha numeric and user defined graphics on three lines utilizing 29 characters per line. In addition to appointment dates, amounts and points, it can print a wide variety of messages.


Reader/Writer Capabilities:
Information can be erased and clearly re-written up to 10,000 imprints. The users information can be continually changed and updated on the display when using the visual card reader/writer system. The card is also re-useable for multiple applications.

Ease of Use:
Simply insert the card into the slots, allowing trouble free quick utilization.

Wide Variety of Applications:
The diverse functions make it capable to display appointment dates, membership ID, balances and bonus points status, etc.


Visual Card Advantages

  • Most Updated information can be shown on the card
  • More Cost effective than the existing marketing methods
  • Card holder can always have the current status information
  • Visual Card is great support for your customer loyalty programs

Features of using Visual Card Technology

Magnetic Technology

  • Print Life: 10,000 Times - Most durable type in the whole world
  • Print Speed is 1 sec - Fastest type in the world
  • Accidentally Erased By Magnet Still, data is still captured in mag-stripe or IC chip

Thermal Technology

  • Print Life: 500 Times
  • Print Speed is 5-6 sec
  • Not Accidentally Erased By Magnetic
  • PVC Thermal Does not Require Milling cost - It makes card cost less expensive
  • PET Thermal Require Lage Invest to Manufacturer
High durability and visibility

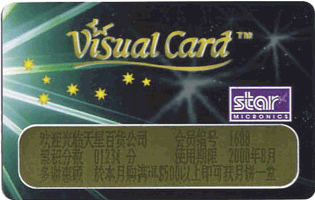

Magnetic Visual Card
Human readable area is added to conventional plastic card. The area can display easy-to-read characters. It is the most durable as it can be erased and reprinted for 10,000 times. It is the most popular one in Japan.
  • Magnetic capsule to re-write Gold Base Colour Black Print Colour 10,000 times under appropriate condition 22 characters x 3 lines (Chinese character)
    66 characters x 3 lines (English character) PVC 0.76mm Thickness Magnetic Stripe (ISO 3rd Track : 104 characters)
    IC (Siemens SLE : 2kbit or 8kbit)
  • MP210ZD (Magnetic stripe)
    MCP390TD (IC Card)
Available with Embossing Card Such as Credit Card
Thermal Visual Card
New thermal method is applied to human readable area. The fancy-look silver base and white printing will attract your customers. The area can also display Chinese characters, and can be erased and reprinted up to 1000 times. As it also apply for embossing magnetic stripe card, it is possible to use for future banking card or credit card.
  • Thermal to re-writeSilver Base ColourWhite Print Colour1,000 times under appropriate condition22 characters x 3 lines (Chinese character)
    66 characters x 3 lines (English character)PVC 0.76mm ThicknessMagnetic Stripe (ISO 3rd Track : 104 characters)
    IC (Siemens SLE : 2kbit or 8kbit)
  • TCP110ZD (Magnetic stripe)
    TCP192TD (IC Card)
Thin Type Card with Maximum Printable Area
Thermal Re-Writable Card (Thin Card)
Then thin card is easy to carry. It is getting popular in Japanese market. The full printable area can be utilized to show more messages. The area can be erased and reprinted up to 500 times.
  • Thermal to re-writeSilver Base ColourWhite Print Colour 500 times under appropriate condition 22 characters x 3 lines (Chinese character)
    66 characters x 3 lines (English character) PVC 0.18 to 0.25mm Thickness Magnetic Stripe (ISO 3rd Track : 104 characters)
  • TCP2000ZD will be available on OEM base
