 Maple Touch |
| MapleTouch Touch POS series Balance between stylish appearance
and perfect connotation Touch POS series include the LCD touch
monitors and touch computers which made of aluminum alloy
materials with fashion metal shell design and human touch-operation
(mode). There are strong expansion functions which the back can
connect to various kinds of hardware devices, such as Customer
(mode). There are strong expansion functions which the back can
I-Button ID Identified Reader, Smart Card Reader and so on. They
can be compatible with the common operating systems & applications,
and applied to entertainment, restaurants, bars, supermarkets,
convenience stores and many other places. |
| Characteristics |
- Alloy aluminum shell-rugged and durable beautiful in good style Firm base
stand-adjustable
using angle without rocking.
- Perfect match with many other relevant types of equipment
- MapleTouch Five-wire Resistive Touch Screen
(Hitting life:
more than 35 million times for
each point)
- Dustproof, greaseproof, sensitive to touch (any unsharp
objects can be used to touch)
- VESA mounting holes fits optional tilt / swivel wall / swivel
wall mount fixtures (75*75).
|
| Application |
| Widely applied to different fields, simplify user operation, such as
POS cash registers, food & beverage order dishes, industry, medical
affairs, information machines, retail, transport, office automation, etc. |

| MP125 12" Touch Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
TFTLCD12.1" |
| Resolution |
800×600 |
| Contrast Radio |
250：1 |
| Color Resolution |
262K |
| Brightness |
150cd/㎡ |
| Touch Screen |
MapleTouch 5-wire Resistive Touch screen
(Hitting life: more than 35 million times for each point) |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、4A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Base dimensions |
W*L*H(197mm*198mm*146mm) |
| Outline dimensions |
W*T*H(318mm*50mm*238mm) |
| Weight （NET/GW） |
4.5/6kg |
| MP155 15" Touch Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
TFTLCD15.1" |
| Resolution |
1024*768 |
| Contrast Radio |
450：1 |
| Color Resolution |
16.2M |
| Brightness |
250cd/㎡ |
| Touch Screen |
MapleTouch 5-wire Resistive Touch screen
(Hitting life: more than 35 million times for each point) |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、4A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Other |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Base dimensions |
W*L*H(197mm×198mm×146mm) |
| Outline dimensions |
W*T*H(366mm×65mm×286mm) |
| Weight （NET/GW） |
5.8/7.5kg |
| MP175 17" Touch Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
TFTLCD17.1" |
| Resolution |
1280*1024 |
| Contrast Radio |
500：1 |
| Color Resolution |
16.2M |
| Brightness |
300cd/㎡ |
| Touch Screen |
MapleTouch 5-wire Resistive Touch screen
(Hitting life: more than 35 million times for each point) |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、4A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Other |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Base dimensions |
W*L*H(197mm*198mm*146mm) |
| Outline dimensions |
W*T*H(403mm*67mm*330mm) |
| Weight （NET/GW） |
6.5/8.5kg |

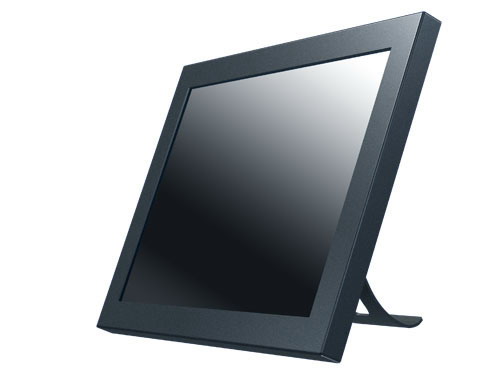

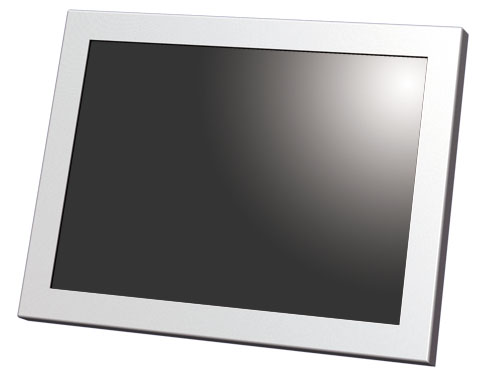

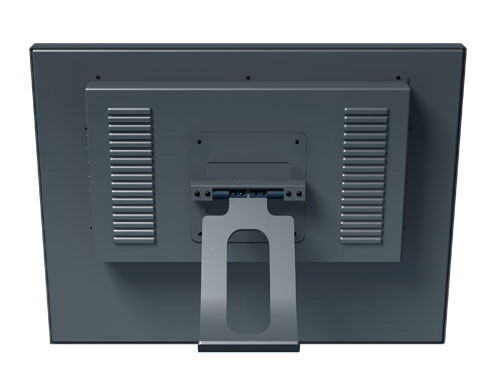

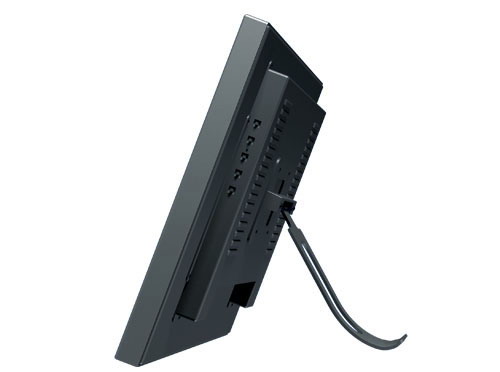

| YL121 12" Touch Wall Mounting Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
SVGA TFT 12.1" |
| Resolution |
800×600 |
| Contrast Radio |
250：1 |
| Color Resolution |
16.2M |
| Brightness |
150cd/㎡ |
| LCD MTBF |
50,000 Hours |
| Back Light MTBF |
25,000 Hours |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、5A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging, Desktop VESA |
| Power supply |
110V - 240V AC |
| Dimensions |
L*W*T(300mm × 238mm × 45mm) |
| Color |
Black or White |
| Optional stand |
ARM-11 |
| Optional mount |
RK-150 (8U) |
| YL151 15" Touch Wall Mounting Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
SVGA TFT 15.1" |
| Resolution |
1024 x 768 |
| Contrast Radio |
450：1 |
| Color Resolution |
16.2M |
| Response Time |
25ms |
| Brightness |
350cd/㎡ |
| LCD MTBF |
50,000 Hours |
| Back Light MTBF |
25,000 Hours |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、5A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging, Desktop VESA |
| Power supply |
110V - 240V AC |
| Dimensions |
L*W*T(365mm × 285mm × 45mm) |
| Color |
Black or White |
| Optional stand |
ARM-11 |
| Optional mount |
RK-150 (8U) |
| YL171 17" Touch Wall Mounting Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
SVGA TFT 17.1" |
| Resolution |
1280 x 1024 |
| Contrast Radio |
500：1 |
| Color Resolution |
16.2M |
| Brightness |
400cd/㎡ |
| LCD MTBF |
50,000 Hours |
| Back Light MTBF |
25,000 Hours |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、5A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging, Desktop VESA |
| Power supply |
110V - 240V AC |
| Dimensions |
L*W*T(405mm × 338mm × 50mm) |
| Color |
Black or White |
| Optional stand |
ARM-11 |
| Optional mount |
RK-150 (8U) |

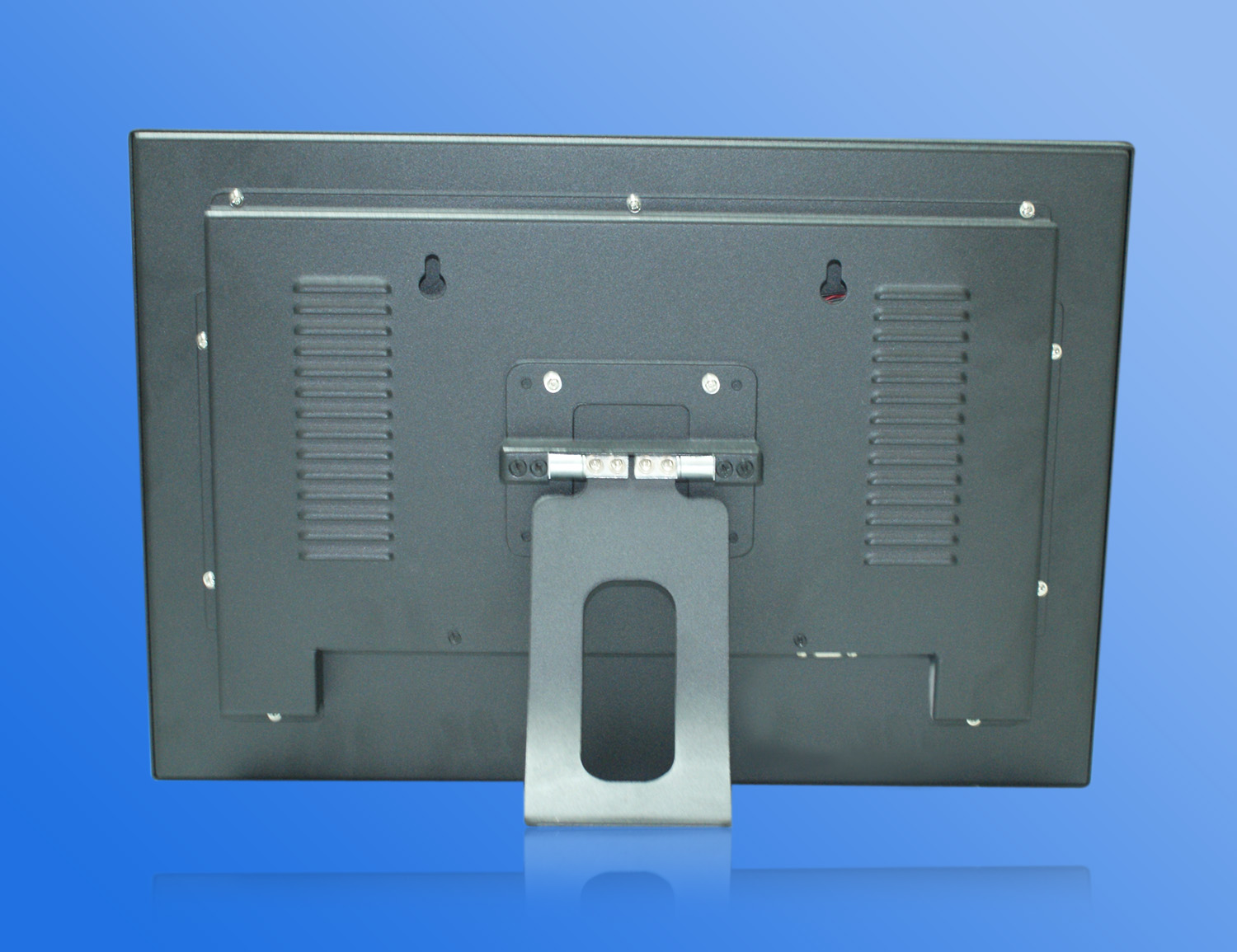

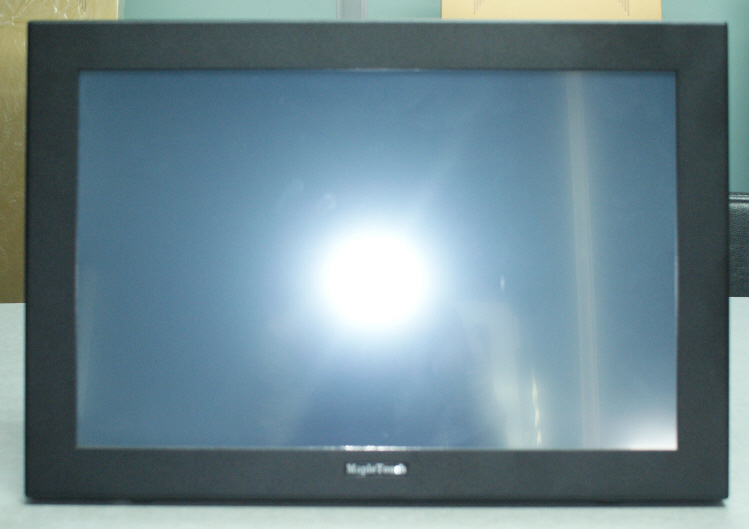

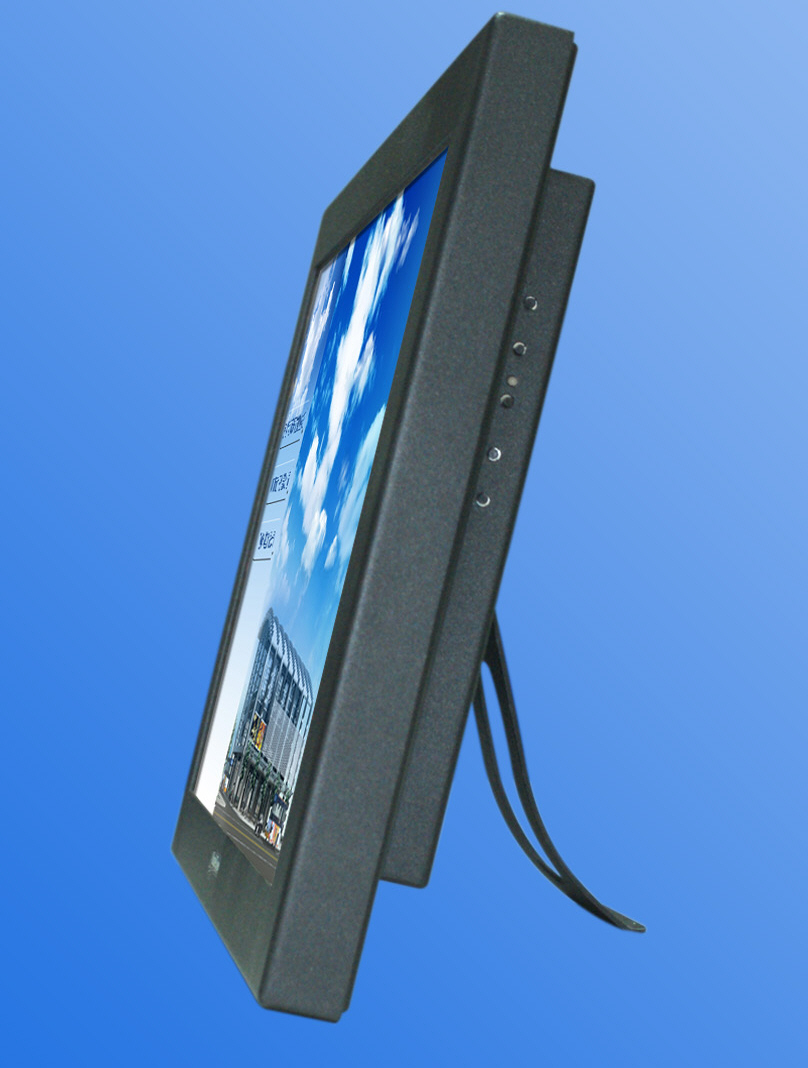

| YL192 19" Wide Screen Touch Wall Mounting Monitor |
| Click on View photo
|
| Product Specification |
| Dimension |
SVGA TFT 19" |
| Resolution |
1280 x 768 |
| Contrast Radio |
500：1 |
| Color Resolution |
16.7M (24bit) |
| Brightness |
250 cd/㎡ |
| Response Time |
30 ms |
| Hitting life |
35 million times for each point |
| Operating System |
DOS，WIN98, 2000, XP，Vista,
LINUX，WINCE OS, Mac |
| I/O Connection |
| VGA port |
Analogue Sub-D (VGA) |
| Controller |
USB/COM option |
| DC Adapter |
DC12V、4A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Other |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Dimensions |
L*W*T(485mm × 325mm × 30mm) |
| Color |
Black |
| Optional stand |
ARM-11 |
| Optional mount |
RK-150 (8U) |
 Cyber Touch |
- Pure-glass touchscreens for superior image clarity, resolution,
and light transmission
- Durable, scratch-resistant, and vandal-proof glass surfaces
- Stable, "drift-free" operation for touch response that's always accurate
- Finger, gloved hand, and soft stylus activation
- Fast touch respone
 Product brochure (PDF)
|
|
Size |
15" |
17" |
19" |
Maximum
Screen Size |
305 X 228mm |
337.9 X 270.3mm |
379 X 303mm |
Pixel Pitch |
0.294mm |
0.264mm |
0.294mm |
Brightness |
250cd/m2 |
350cd/m2 |
250cd/m2 |
Contrast Ratio |
450:1 |
Display Colors |
16.7million Colors |
Response Time |
12ms |
Viewable Angle |
Horizontal:150°
Vertical:120° |
Horizontal:160°
Vertical:140° |
Horizontal:160°
Vertical:160° |
Agency Approval |
FCC,CE |
H-Frequency |
30k-80KHz |
V-Frequency |
55-75Hz |
Max Resolution |
1024x768 |
1280x1024 |
1280x1024 |
Power Supply |
220V |
Color |
Black |
Operating Temperature |
0~40°C |
Power Consumption |
Working Mode ≦30w Sleep Mode ≦3w |
Input Signal |
RGB Analog |
Interface |
D-sub 15-pin |
Technology |
Surface wave |
Touch point Density |
100,000 touch points per square inch
（15000 touch points square cm） |
Touch Response |
Response time <10ms，Response <85g |
Transparency |
Over 90% of ASRTMD1003 standard |
Operating Temperature |
0~40°C |
Storage Temperature |
-10~50°C |
Operating
Humidity |
10%~90% |
Dimensions
(W X H X D)
|
388x335x47mm
（Without Stand） |
404x336x36mm
（Without Stand） |
427x370x47mm
（Without Stand） |
388x390x185mm
（With Stand） |
404x428x188mm
（With Stand） |
427x424x180mm
（With Stand） |
430x453x144mm
（With Packing） |
435x460x160mm
（With Packing） |
466x467x144mm
（With Packing） |
|
