| MP-300K
Mini DOT Impact Matrix Receipt Printer |
 |
Features |
| · Higher printing speed |
| · Low noise |
| · Black mark orientation, print with fixed length |
| · Excellent build quality |
| · Widespread applications |
| |
Technical Specifications
:
Printing
method |
Serial
impact dot matrix |
Printing
head |
9 pins |
Font |
7
X 9 |
Column |
42 columns |
Character
per line |
42 |
Print Speed |
4.6 LPS |
Date buffer |
4
KB |
Emulation |
ESC / POS |
Interface |
RS-232,
parallel (option) |
Paper dimensions |
Max￠83.0mm |
Paper width |
76
± 0.5mm |
Paper thickness |
0.06 to 0.085mm |
Copy capability |
One
original and one copy |
Ink ribbon
type |
ERC-39 (black,
purple) |
Power supply |
AC
adapter 24V (included) |
Power consumption |
Approx. 31W average |
MCBF |
18
x 106 lines |
Drawer port |
1 port |
Dimensions |
158
(W) X 270 (D) X 140 (H) |
Operating
Temp |
0 - 45℃ |
Auto cutter (option) |
Full
cut |
Auto cutter MCBF |
1,500,000 cuts |
|
| |
| |
| MP-58MK
Thernal Receipt Printer |
|
Features:
· High speed
· Drop-in-paper loading
· Black mark orientation
|
Technical Specifications
:
Printing
method |
Thermal dot line printing |
Font |
12 × 24 |
Character
set |
95 Alphanumeric, 32 International |
Interface |
Parallel, Serial (RS-232) |
Print speed |
Approx.
60 mm/sec |
Paper Dimensions |
Thermal paper roll
57.5 ± 0.5mm(W)X￠80mm (Max) |
Paper thickness |
0.06～0.07mm |
Printing
width |
48.5mm ± 0.5mm |
Power |
DC 9V, 2A; 12V, 1A |
Cash drawer |
DC 12V 、1A RJ11 1 Drawer |
Dimensions |
130 (W) X 220 (D) X 120 (H)
mm |
Environment |
Operating: 0～45℃,10?～90%
RH (except for paper) |
Storage: -25～70℃,10～90%
RH (except for paper) |
Head pulse
life |
10,000,000 times |
|
| |
| |
| MP-POS58
Thernal Receipt Printer |
|
Features:
· Compatibility ESC/POS
· 2K bytes input buffer
· Cash drawer kick-out
|
Technical Specifications :
Printing
method |
Line thermal dot printing |
Font |
12×24、24×24 |
Printing
speed |
Approx. 55mm/sec |
Printing
width |
58mm paper 48.5mm/288dots |
AC adapter |
Input: AC100-240V,
50/60A
Output: DC9V / 12V |
Paper feed method |
Friction |
Paper type |
Thermal paper roll
57.5 ± 0.5mm(W) X￠80mm(MAX) |
Paper thickness |
0.06～0.07mm |
Interface |
Parallel: Centronics,
Serial: RS-232C |
Paper cutter |
None |
Cash drawer |
DC 12V 、1A RJ11 1 Drawer |
Power consumption |
30W |
Weight |
Approx. 1.1 Kg |
Dimensions |
117(W) X 207 (D) X 125 (H) |
Operating environment |
0～45℃,10?～90% RH (except for paper) |
Storage environment |
-25～70℃,10～90% RH (except for
paper) |
Head pulse
life |
50000000 pulse |
Reliability |
Printer (MCBF): 50 km
(When printing with font (9X24) ) |
EMC and
safety standards |
"CCC" China Compulsory
Product Certification |
|
| |
| |
| MP-88K
Thernal Receipt Printer |
|
Features:
· High speed
· Drop-in-paper loading
· Black mark orientation
|
Technical Specifications
:
Printing
method |
Line thermal dot printing |
Font |
12×24、24×24 |
Printing
speed |
Approx. 160mm/sec |
Printing
width |
72 mm |
AC adapter |
Input: AC100-240V,
50/60A
Output: DC9V / 12V |
Paper feed
method |
Friction |
Paper type |
Thermal paper roll
80 ± 0.5mm(W) X￠80mm(MAX) |
Paper thickness |
0.06～0.07mm |
Interface |
Parallel: Centronics,
Serial: RS-232C |
Paper cutter |
Full cut / Half cut (Selectable) |
Cash drawer |
DC 12V 、1A RJ11 1 Drawer |
Power consumption |
30W |
Weight |
Approx. 1.1 Kg |
Dimensions |
117(W) X 207 (D) X 130 (H) |
Operating
environment |
0～45℃,10?～90% RH (except for paper) |
Storage
environment |
-25～70℃,10～90% RH (except for
paper) |
Head pulse
life |
50000000 pulse |
Reliability |
Printer (MCBF): 50Km
(When printing with font (9 X 24) ) |
EMC and
safety standards |
"CCC" China Compulsory
Product Certification |
|
| |
| |
| MP- 80KC
Thernal Receipt Printer |
|
Features:
· Compatibility ESC/POS
· 4K bytes input buffer
· Cash drawer kick-out |
Technical Specifications :
Printing method |
Line Thermal dot printing |
Printing width |
80mm paper 72mm / 576dots |
Dot pitch |
8 X 8dots/mm (203dpi X 203dpi) |
Font |
12×24、24×24 |
Printing speed |
Approx. 90mm/sec |
AC adapter |
Input: AC100-240V,
50/60A
Output: DC24V/5V |
Line spacing |
4.23mm (1/6 inch), Can be set
by a command |
Paper feed method |
Friction |
Paper type |
Therma paper roll 80mm (W)
X￠63mm (MAX) |
Paper thickness |
0.06～0.07mm |
Interface |
Parallel: Centronics
Serial: RS-232C (Model:MP-80KCS) |
Input buffer |
4K bytes |
Paper cutter |
Auto cutter (Partial and Full) |
Cash drawer |
DC 24V 、1A RJ11 1 Drawer |
Power consumption |
48W |
Weight |
Approx. 1.4 Kg |
Dimensions(W×D×H) |
140(W) X 225 (D) X 135 (H) |
Operating environment |
0～45℃,10?～90% RH (except for paper) |
Storage environment |
-25～70℃,10～90% RH (except for
paper) |
Head pulse life |
500,000,00 pulse |
Auto cutter life |
1,500,000 times |
Reliability |
Printer (MCBF): 50Km
(When printing with font (9 X 24) ) |
EMC and safety
standards |
"CCC" China Compulsory
Product Certification |
|
| |
|
|
| MP-ECR1000
Electronic Cash Register |
|
MP-ECR1000 is newly produced electronic cash register, has functional
unique stripy from statements, PLU sales volume, sales volume,
sales charts, shortage statements and membership management. |
Features:
|
· 5 rows X 20 cols LCD operator display,
high light VFD customer
display |
| · Very high-speed and silent thermal printer |
· Support external kitchen printer, scale,
customer display
and modem |
Technical Specifications
:
Printer
head |
Thermal |
Paper
width |
58mm |
Printing
speed |
Approx.
10line/s |
Display |
128 * 64 LCM
operator display
9 digits 7-segment VFD |
Keyboard |
59
Keys |
Interface |
1RS232 / 1RS485
/ 1PS2 |
External |
Barcode
reader |
Device |
Kitchen printer |
Support |
Scale,
PC, MODEM, Customer display |
Control
lock |
Software key |
Cash
drawer |
9V
cash drawer |
Power
supply |
Transformer |
Registration |
Single
/ Multi-items, %+, %-, (+), (-), once / repeat,
PLU sale, department sale.
Void, Return Merchandise, Error correct
Transcation void, ect. |
Departments |
50 |
PLUs |
12000
max. (PLU name with 12 characters) |
Media
totals |
9 |
Amount
entry |
0
- 9999.99 |
Memory
billing |
Yes |
Decimal
point |
2
or none |
Customer
management |
Yes |
Stock
management |
Yes |
Profit analysis |
Yes |
Electronic journal |
Yes |
Clerks |
50 |
Limitation |
19
kinds of limitation can be assigned |
Reports |
Daily and
PTD
Terminal full report / Hourly report / Clerks report / etc. |
Dimensions (mm) |
340
(W) x 380 (D) x 170 (H) |
|
| |
| |

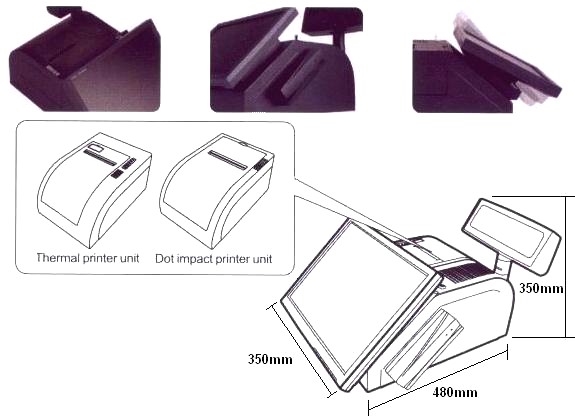

| MP-4000
Touch POS Terminal |
 |
Features:
|
·
|
MP-4000 Touch POS Terminal can flavour
any store or restaurant whouse it, thus you will get warm approval
because of your choice. |
| · |
Touch srceen improves overall management
efficiency. |
·
|
The terminal adopts 15" LCD
screen, printer integration. |
·
|
With the use of software, can order
dishes and multifunctional can improve manage efficiency. |
| · |
It's really ideal production for
hotels, restaurants, bars, franchise stores, etc. |
|
Technical Specifications :
Mainboard |
POS
Special mainboard |
CPU |
CIII 800 or
above |
Memory |
128
MB |
Hard Disk |
60 GB |
Printer Uints |
80mm
Thermal Printer or 76mm Dot Impact Matrix Printer |
Display |
15" TFT
color (1024 × 768) |
Customer Display |
LCD
matrix display (20 x 2-line display 240 X 64 dots graphic
display) |
Touch panel |
USB resistive
touch panel |
Ethemet |
10/100M
Be suited by itself |
Interface |
1Centronics、2RS232、2USB |
Dimensions (mm) |
350
(W) x 480 (D) x 350 (H) |
Power supply |
Built-in 100～240V
output total 180W |
|
| |
|
|
| MP-ECR1000
Electronic Cash Register |
|
Features:
The 8 bits LED display,supplies situation lights of unit price, account
receivable, account received and change given. |
| MP-KB95
95 Keys Programable Keybroad |
|
Features:
· All 95 keys full programmable design
· Optional Magnetic card / smart card reader
· Water spill proof design
· Multi-layer design
· Driver support DOS, Win 9x / Me / NT / XP |
| MP-400A
CASH DRAWER |
|
Features:
· Whole-steel of case body
· Smoothing Standard ABS plastic front
· Standard ABS plastic 5 coin / 5 bill Removable money tray |
| MP-420B
CASH DRAWER |
|
Features:
· Whole-steel of case body
· Smoothing Standard ABS plastic front
· Standard ABS plastic 5 coin / 5 bill Removable money tray |
| MP-420C
CASH DRAWER |
|
Features:
· All Steel Construction with Stainless steel front
· Standard ABS plastic 5 coins / 5 bill Removable money tray
· The convenient three-grade security drawer key lock |
| |
|
|
| MN-2000
Laser Barcode Scanner |
|
MN-2000 is desighed for use in POS and many other applications
like Lirary, Bank, Warehousing, Industrial Production, etc.
|
| F e a t u r e s : |
| • Automatic trigger |
• PowerLink, user-replaceable cables
|
| • Adjustable stand |
| • Custom edit the bar code data |
| • Short-range and long-range activation |
| • Easy programming using Windows® software
or bar codes |
| • Supports commonly used interfaces, including
USB, RS232 |
| • OPOS system compatible |
Technical Specifications:
Type
of lamp house |
650nm
laser |
Manner
of using |
Portable
or setting in bracket |
Rate
of wrong code |
1/1,000,000 |
Security
capability |
In
compliance with the national Grade II laser security standards |
Type
of bar codes |
UPC-A,
UPC-E, Industrial 2 of 5, Interleaved 2 of 5, E AN8, EAN
13,
Code 128, EAN 128, Code39, Code 93, Codabar125, etc. |
The
supported port |
RS
232, PC Keyboard and USB |
The
manner of scan starting |
Manual
, Scanner , Automatic (option) |
Speed
of transfer |
RS232
Baudrate; 2400-38400 |
Degree
of parse (pos0.9) |
0.10mm
(4mil) |
Width
of reading |
60mm
at 30mm (The distance to thing); 98mm at 100mm
(The distance to thing) |
Depth
of field |
10-420mm
(pos0.9 density 0.25) |
Scan
Speed |
74
scans/second |
Precision
of code reading |
0.10-0.825mm |
Distance
of code reading |
10-520mm |
|
Stand |
Adjustable
stand (option) |
Elevation
of reading |
60℃ |
Obliquity
of reading |
45℃ |
Operating
temperature |
-20℃-45℃ |
Storage
temperature |
-20℃-45℃ |
Operating
humidity |
5%-85% |
Storage
humidity |
5%-85% |
Input
Voltage |
5V |
The
working electric current |
120mA |
The
static electric current |
30mA |
Test
of springing and dropping |
100
times / 1.5m |
Intensity
of bearing the light |
Sunlight
3.000 LUX max |
Disturbance
of electromagnetism |
In
compliances with the en50081, par1 specifications |
Avoid
the disturbance of
electromagnetism exterior |
In
compliances with the en50082, par1 specifications |
Dustproof
and waterproof |
In
compliance with the IEC 529 and IP42 specifications |
Dimension: |
99mm
(L) x 69mm (W) x 206mm (H) |
Material |
ABS
+ pc |
Weight |
142g |
|
| |
|
|

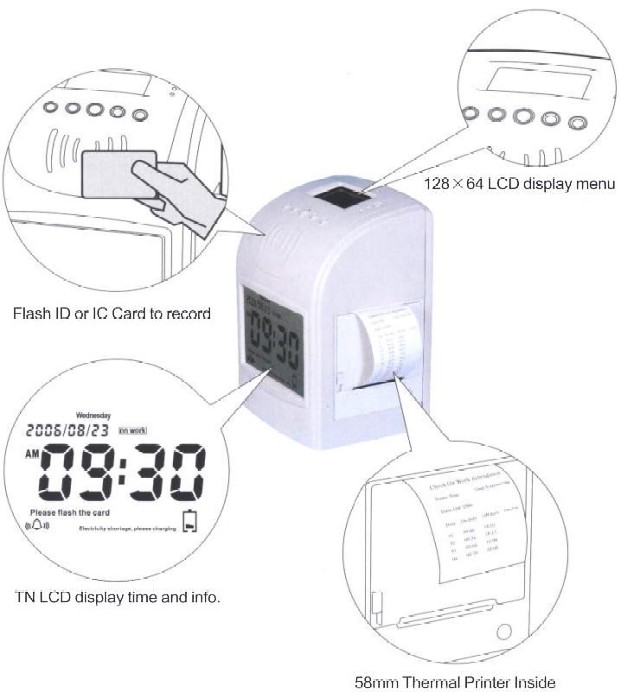

| MP-TR2200
Time Recorder System |
 |
F e a t u r e s :
|
| • |
58mm thernal printer inside to print
real-time attendance record. |
| • |
Flash ID or IC card to record attendance |
| • |
Can inquire daily, weekly and monthly
attendance statements and print it. |
| • |
At the end of month, it can print
late, early left and absent records. |
| • |
To use traditional time record
is troubled in calculation one card by one. |
| • |
User-friendly, simple procedure
for time, perpetual calendar, and pay-ending day program. |
| • |
Perpetual calendar automatically
adjusts for time and date, includin daylight
saving time and the end of every month. |
| • |
Enable connect with PC. |
|
Technical Specifications:
Output Media |
58mm
Thermal printer inside |
Media |
Contactless
ID card or IC card |
Display |
8" TN
LCD display time
128 x 64 LCD display menu |
Indicator |
On, off, overtime,
battery info. |
LAN |
10
Base-T / 100 Base-TX (TCP/IP) |
Interface (option) |
RS-232, PS/2,
USB |
Flash |
1
MB |
Memory Backup |
Clock and
data can be held for 2 years during power failure |
Power Supply |
100 - 240
VAC ± 10% 50 / 60 HZ |
Dimensions (mm) |
168 (W) x
135 (D) x 233 (H) |
|
| |
