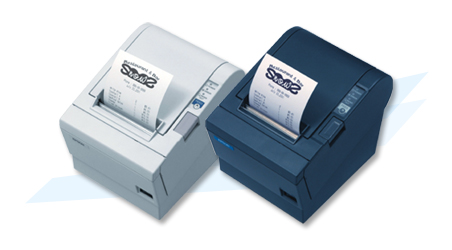

| TM-T88IV |
| High-speed Thermal Printer |
| Fast and Flexible |
| The TM-T88IV prints receipt at speeds of up to 200 mm per second for both text and graphics - 30% faster than the TM-T88III. With two-color*, advanced graphic and barcode (PDF417 and QR code) printing capability, this printer provides highly customized receipts including logos and promotional messages. Its flexible page mode gives you a choice of receipt layouts. *Max. two-color printing speed is 100 mm/sec. *To print in two colors, users must load dedicated thermal paper and set the printer to the two-color printing mode. |
|
| Fully Compatible with TM-T88III |
| The TM-T88IV has all the benefits of the TM-T88III with improved performance. |
| SPECIFICATION |
| Print method |
|
Thermal line printing |
| Print font |
Font |
9 x 17 / 12 x 24 |
|
Column capacity (columns) |
56 / 42 |
|
Character size (mm) |
0.99(W) x 2.4(H) / 1.41(W) x 3.39(H)
|
|
Character set |
95 Alphanumeric, 37 International, 128 x 8 Graphic, Traditional / Simplified Chinese, Thai, Japanese, Korean
Bar code: UPC-A, UPC-E, JAN8 (EAN), JAN13(EAN), CODE 39, CODE 93, CODE 128, ITF, CODABAR
Two-dimensional code: PDF417, QRCode |
|
Characters per inch |
20.0 CPI / 15.0 CPI |
| Interfaces |
|
RS-232, Bi-directional parallel,
Dealer option: RS-485, USB, 10 Base-T I/F |
| Data buffer |
|
4K bytes / 45 bytes |
| Print speed |
|
Max. 200 mm / sec |
| Paper |
Dimensions (mm) |
Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 mm |
|
Thickness (mm) |
0.06 ~ 0.07 |
| Power |
|
24 VDC ± 7% |
| Power consumption |
|
Approx. 1.8 A (mean) |
| D.K.D.function |
|
2 drivers |
| Reliability |
|
MTBF 360,000 hours
MCBF 52,000,000 lines |
| Overall dimensions (mm) |
|
145(W) x 195(D) x 148(H) |
| Mass (Approx.) |
|
1.8Kg |
| EMI standards |
|
FCC, VCCI class A,
CE marking, AS / NZS CISPR22 class B |
| Power Supply |
|
PS-180 (option) |
| Option |
|
Wall-hanging bracket WH-10 |
| Safety standards |
|
UL, CSA, TUV (EN60950) |
|
|
