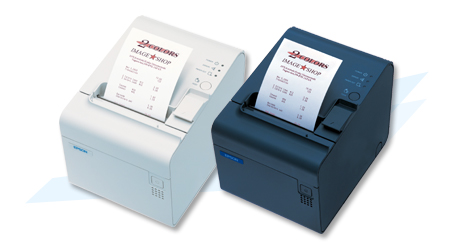

| TM-T90 |
| High-Speed, High Performance Thermal Printer |
| Ultra Fast |
At 170mm/sec., TM-T90 is one of the fastest class printers – even when it prints barcodes and logos. Also capable of printing in 2-colors,
customers are sure to be impressed by the output of this high-performance printer.
*Max. 2-color printing speed is 100 mm/sec.
**To print in two colors, users must load dedicated thermal paper and set the printer to the 2-color printing mode. |
| |
| Versatile and Easy to Use |
| A simple drop-in loading system means that even inexperienced operator can load paper rolls with the minimum of effort. Capable of handling
paper rolls of up to 102 mm in diameter, the compact TM-T90 can be unobtrusively located in any retail environment. |
| SPECIFICATION |
| Print method |
|
Thermal line printing |
| Print font |
Font |
9 x 17 / 12 x 24 |
|
Column capacity (columns) |
56 / 42 |
|
Character size (mm) |
1.3(W) x 2.4(H) / 1.7(W) x 3.4(H)
|
|
Character set |
95 Alphanumeric, 37 International, 128 x 11 Graphic,
Bar code: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), CODE 39, CODE 93, CODE 128, ITF, CODABAR, PDF 417. |
|
Characters per inch |
20.0 CPI / 15.0 CPI |
| Interfaces |
|
RS-232, Bi-directional parallel,
Dealer option: RS-485, USB, 10 Base-T I/F |
| Data buffer |
|
4K bytes / 45 bytes |
| Print speed |
|
Max. 170mm / sec |
| Paper |
Dimensions (mm) |
Roll paper: Max. 79.5 ± 0.5 x dia. 102.0 |
|
Thickness (mm) |
0.06 ~ 0.08 |
| Power |
|
24 VDC ± 7% |
| Power consumption |
|
Approx. 1.7 A (mean) |
| D.K.D.function |
|
2 drivers |
| Reliability |
|
MTBF 36 x 104 hours
MCBF 70 x 106 lines |
| Overall dimensions (mm) |
|
140(W) x 201(D) x 148(H) |
| Mass (Approx.) |
|
1.8Kg |
| EMI standards |
|
VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B |
| Safety standards |
|
UL, CSA, TUV (EN60950) |
|
|
