 Maple Touch |
| MapleTouch Touch POS series Balance between stylish appearance
and perfect connotation Touch POS series include the LCD touch
monitors and touch computers which made of aluminum alloy
materials with fashion metal shell design and human touch-operation
(mode). There are strong expansion functions which the back can
connect to various kinds of hardware devices, such as Customer
(mode). There are strong expansion functions which the back can
I-Button ID Identified Reader, Smart Card Reader and so on. They
can be compatible with the common operating systems & applications,
and applied to entertainment, restaurants, bars, supermarkets,
convenience stores and many other places. |
| Characteristics |
- Alloy aluminum shell-rugged and durable beautiful in good style Firm base
stand-adjustable
using angle without rocking.
- Perfect match with many other relevant types of equipment
- MapleTouch Five-wire Resistive Touch Screen
(Hitting life:
more than 35 million times for
each point)
- Dustproof, greaseproof, sensitive to touch (any unsharp
objects can be used to touch)
- VESA mounting holes fits optional tilt / swivel wall / swivel
wall mount fixtures (75*75).
|
| Application |
| Widely applied to different fields, simplify user operation, such as
POS cash registers, food & beverage order dishes, industry, medical
affairs, information machines, retail, transport, office automation, etc. |

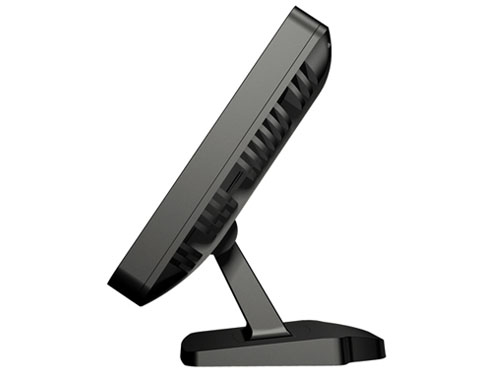

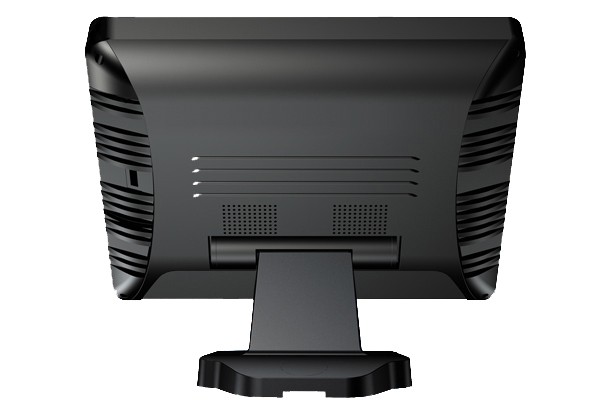

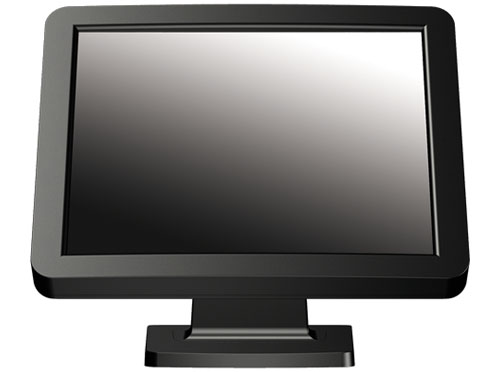

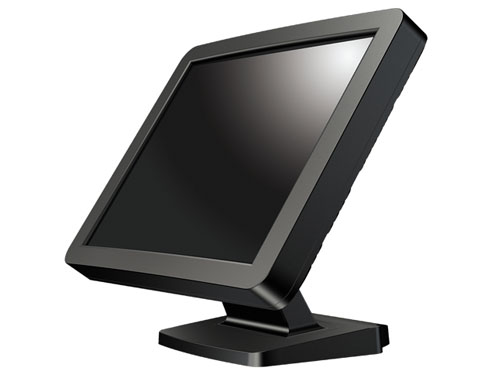

| MP156 15" Touch All-In-One Computer |
Click on View photo

 |
| Product Specification |
| Dimension |
TFTLCD15.1" |
| Resolution |
1024*768 |
| Contrast Radio |
450：1 |
| Color Resolution |
16.2M |
| Brightness |
250cd/㎡ |
| Touch Screen |
MapleTouch 5-wire Resistive Touch screen
(Hitting life: more than 35 million times for each point) |

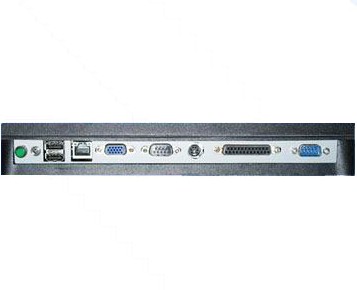

| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM (Optional) |
| DC Adapter |
DC12V、5A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Base dimensions |
W*L*H(197mm*222mm*146mm) |
| Outline dimensions |
W*T*H（366mm*65mm*286mm） |
| Weight （NET/GW） |
6.14/7.64kg |
| Standard Collocations |
| Mainboard |
Intel 865GME |
| CPU |
Centrino 1.4G (or higher to 2.0G) |
| Memory |
DDR512M |
| HDD |
80G |
| VGA |
DB-15 port |
| USB port |
2 units or more |
| RS232 |
1 unit or more |
| Audio Interface |
AC97(1 sound input, 1 sound output) |
| Network Interface |
10/100Mbps high speed Ethernet network |
| IEEE1394 |
2 units |
| MP176 17" Touch All-In-One Computer |
Click on View photo

 |
| Product Specification |
| Dimension |
TFTLCD17.1" |
| Resolution |
1280*1024 |
| Contrast Radio |
500：1 |
| Color Resolution |
16.2M |
| Brightness |
300cd/㎡ |
| Touch Screen |
MapleTouch 5-wire Resistive Touch screen
(Hitting life: more than 35 million times for each point) |
| I/O Connection |
| VGA port |
DB-15 port |
| Controller |
USB/COM (Optional) |
| DC Adapter |
DC12V、5A |
| Circumstance Condition |
| Operation Temperature |
-10℃ ~ 35℃ |
| Store Temperature |
-20℃ ~60℃ |
| Others |
| Installing ways |
Hanging ,Desktop VESA |
| Power supply |
110V - 240V AC |
| Base dimensions |
W*L*H（197mm*222mm*146mm） |
| Outline dimensions |
W*T*H（403mm*72mm*330mm） |
| Weight（NET/GW） |
6.84/10.3kg |
| Standard Collocations |
| Mainboard |
Intel 865GME |
| CPU |
Centrino 1.4G (or higher to 2.0G) |
| Memory |
DDR512M |
| HDD |
80G |
| VGA |
DB-15 port |
| USB port |
2 units or more |
| RS232 |
1 units or more |
| Audio Interface |
AC97(1 sound input, 1 sound output) |
| Network Interface |
10/100Mbps high speed Ethernet network |
| IEEE1394 |
2 units |

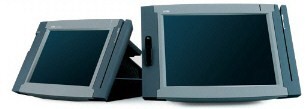

Opoz 5000 12"/15" Touch All-In-One Computer |

   |
 Product brochure (PDF) |
| Product Features |
- At the hardware components, including host unit, 12.1" TFT touch screen
customer display, RFID & MSR reader, combine into a space saving all-in-one
- Patent design on LCD with 3 adjustable viewing angles : 30 ° , 60 ° and 90 °
- Movable 2x20 VFD customer display by button-up lock
- Movable RFID & MSR reader
- Special design of opening cash drawer by customer display
- The rubber painted cover can withstand the scratch primely
- CF & RMA Slot, enable to easy upgrade
|
| Product Specification |
| Host |
| Mainboard |
POS control mainboard |
| CPU |
Intel Celeron-M ULV 1.0 GHz |
| HDD |
2.5" 80GB |
| RAM |
NoteBook 512MB DDR (Up to 2G) |
| Power |
70W/110~220V |
| Interface |
| Customer Display |
1 x internal (by USB) |
| Parallel Port |
1 x external |
| Serial Port |
1 x external |
| Keyboard |
1 x PS/2 |
| Powered USB |
1 x 12V, 1 x 24V |
| USB |
1 x USB2.0 |
| Mouse |
By USB |
| VGA |
1 x external |
| LAN |
1 x 10M/100M |
| CF Slot |
1 x internal |
| RMA extertion slot |
1 x internal |
| Touch Monitor |
| Monitor |
12.1" TFT LCD (1024x768)
15" TFT LCD (1024x768) |
| Touch Panel |
ELO 5 wire resistive touch screen, water-spill proof,
4096 x 4096, 35 million touches |
| Options |
| Customer display |
2 x 20 (5 x 7) Dot Matrix VFD.
Combined on the host or stand alone pole display. |
| Keyboard |
36 Key fully programmable keyboard (Cherry key) (for 12inch screen only) |
| MSR |
Support 1-2-3 tracks |
| RFID |
S50 &S70 IC card, combined on the left-side of Touch Moniter |
| Printer |
Opoz RP-5080 80mm high speed thermal printer. |
| Scanner |
5 Directions, 1200 line/s, 650nm visual laser diode |
| Dimension |
| W x L x H |
360 x 436 x 280mm (with 15" TFT LCD 60 ° )
360 x 400 x 250mm (with 12" TFT LCD 60 ° ) |
|
