TSC
Barcode / Label Printer 		Printer
List
Mobile Direct Thermal Label Printer

203 DPI
Alpha-3R
IP54-rated environmental case to resist dust and water
Double-wall plastic design with rubber over-mold construction that withstands 5 ft. (1.5 m) drop
Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth, and 802.11 b/g/n
High capacity 2500 mAh rechargeable Lithium Ion batteries
Large Paper capacity to reduce the frequency of changing paper roll
High-speed processor and extensive memory for fast print speeds of up to 4" (100mm) per second
Last more than 12 hours of printing receipts on a single battery charge
Supports TSPL-EZ (EPL2 and ZPL emulations) plus CPCL emulation
  Product Brochure (PDF)

203 DPI
M23
1" to 3.15" (25.4 to 80.0 mm) wide paper path
Rugged over-molded design can take up to a 6' (182 cm) drop to concrete and keep going
Full graphic LCD display is standard and shows printer status, battery gauge, set-up menus and error messages
Full range of connectivity options including standard RS-232, standard USB, and optional Bluetooth or 802.11b wireless communication capability
Can print on its back or standing upright for ease of use
Lightweight - only 2.45 pounds (1.11 kgs) with battery and paper installed
Easy media-loading clamshell design
On demand label peel mechanism is included
Long-life 7.4V DC 2200mAh Li-ion battery power
  Product Brochure (PDF)



203 DPI
ALPHA-4L
IP54-rated protective case to resist dust and water
Plastic design with rubber over-mold construction that withstands 1.5 m (5 ft) drop and endures 1.8 m (6 ft) drop with its protective case
Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth, and 802.11 b/g/n
High capacity 5800 mAh rechargeable Li-ion batteries
Large paper capacity to reduce the frequency of changing paper roll
Linerless ready
High-speed processor and extensive memory for fast print speeds of up to 102 mm (4”) per second
  Product Brochure (PDF)
Desktop BarCode Printers
Low Cost Compact
2" Desktop Printer

203 DPI
TDP-225
2" DIRECT THERMAL LABEL PRINTER
Designed with no losable parts
High quality double-walled clamshell design
Direct thermal print technology
Easy media loading
Serial and USB 2.0 connectivity standard
  Product Brochure (PDF) Loading Label (WMV)


203 DPI
TDP-247
High quality double-walled clamshell design
203 dpi Up to 7” per second print speed
Easy media loading
Label capacity up to 214 mm (8.4”) OD
SD Flash memory expansion up to 4 GB
USB 2.0, parallel and serial connectivity standard
  Product Brochure (PDF)

203 DPI

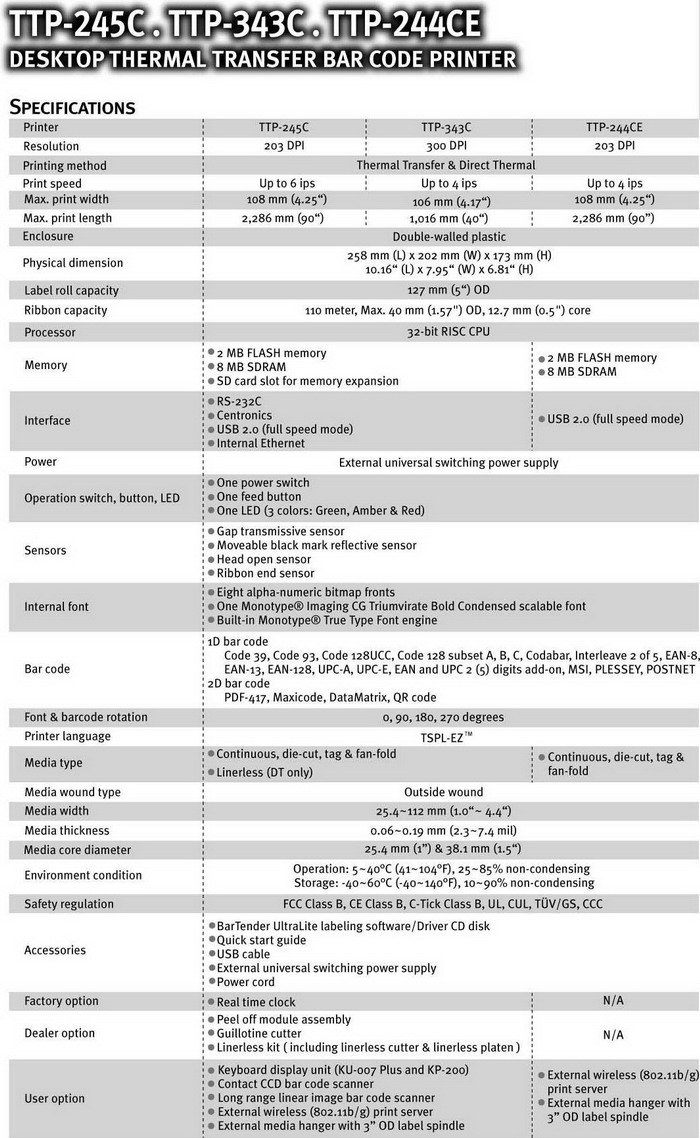

TTP-244CE
Perfect size – space saving design
Easy ribbon & media loading
Durability and reliability
2 MB Flash memory and 8 MB DRAM memory
Up to 100 mm (4.0") per second print speed
Label capacity up to 127mm OD (5" OD)
Options include External wireless (802.11b/g) print server, External media hanger with 3" OD label spindle
  Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)

203 DPI
TTP-245C
Perfect size – space saving design
Easy ribbon & media loading
Durability and reliability
2 MB Flash memory and 8 MB DRAM memory

SD card slot for memory expansion
Up to 150 mm (6.0") per second print speed
Label capacity up to 127mm OD (5" OD)
Standard interfaces: Ethernet, USB 2.0, Serial, and Parallel
Options include External wireless (802.11b/g) print server, External media hanger with 3" OD label spindle
  Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)

300 DPI
TTP-343C
Perfect size – space saving design
Easy ribbon & media loading
Durability and reliability
2 MB Flash memory and 8 MB DRAM memory

SD card slot for memory expansion
Up to 100 mm (4.0") per second print speed
Label capacity up to 127mm OD (5" OD)
Standard interfaces: Ethernet, USB 2.0, Serial, and Parallel
Options include External wireless (802.11b/g) print server, External media hanger with 3" OD label spindle
  Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)

203 DPI
TTP-243 SERIES
Up to 1MB Flash memory and 2MB DRAM memory
Up to 76mm (3.0") per second print speed
Ribbon capacity up to 300m (984' )
Label capacity up to 203mm OD (8.4" OD)
Options include stand-alone printer controller, rotary cutter, and expandable flash memory cartridges.
  Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
  Power On Utility (WMV)

203 DPI
TTP-244
Up to 2MB Flash memory and 2MB DRAM memory
Up to 100mm (4.0") per second print speed
Ribbon capacity up to 300m (984' )
Label capacity up to 203mm OD (8.4" OD)
Options include stand-alone printer controller, rotary cutter, and expandable flash memory cartridges.
Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
  Power On Utility (WMV)

203 DPI
TTP-244 Plus
Up to 2MB Flash memory and 2MB DRAM memory
Up to 100mm (4.0") per second print speed
Ribbon capacity up to 300m (984' )
Label capacity up to 203mm OD (8.4" OD)
Options include stand-alone printer controller, rotary cutter, and expandable flash memory cartridges.
Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
  Power On Utility (WMV)

203/300 DPI
TA200/TA300 SERIES
Dual-motor gear driven design
203dpi(TA200) 300dpi(TA300)
300 meter (984’) ribbon supply on a 25.4 mm (1”) core (coated side out)
127 mm (5”) OD internal media supply,
optional external media holder supports
214 mm (8.4”) OD label rolls on
76.2 mm (3”) core
microSD Flash memory expansion up to 4 GB
Product Brochure (PDF)

Loading Ribbon (WMV)


Loading Label (WMV)

203 DPI
TTP-245 Plus
203dpi (8 dot/mm)
2 MB flash memory and 8 MB DRAM memory
Up to 127mm(5") per second print speed
User-friendly clamshell design
Adjustable from side to side gap and black-mark sensors
Option include stand-alone printer controller, rottary eutter, battery pack and expandable memory card.
Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
   Power On Utility (WMV) Top Cover Operation (WMV)

203 DPI
TTP-247
203dpi (8 dot/mm)
4 MB flash memory and 8 MB DRAM memory
Up to 177.8mm(7") per second print speed
User-friendly clamshell design
Adjustable from side to side gap and black-mark sensors
Option include stand-alone printer controller, rottary eutter, battery pack and 4GB SD expandable memory card.
Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
   Power On Utility (WMV) Top Cover Operation (WMV)

203/300 DPI
TTP-225/323 SERIES
203dpi (8 dot/mm) / 300dpi(12 dot/mm)
4 MB flash memory and 8 MB DRAM memory
Up to 127mm(5")/ 76mm(3") per second print speed
Thermal Transfer & Direct Thermal
Max. print width 54mm(2.13")
Max. print length 2,286 mm (90“)/ 1,016 mm (40“)
Product Brochure (PDF)







300 DPI
TTP-343 Plus
300 dpi (12 dots/mm)
2 MB flash memory and 8 MB DRAM memory
Up to 76mm(3") per second print speed
user-friendly clamshell design
Adjustable from side to side gap and black-mark sensors

Option include stand-alone printer controller, rottary eutter,
battery pack and expandable memory card.
  Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)
   Power On Utility (WMV) Top Cover Operation (WMV)

203/300 DPI
P200/300
203/300 dpi (8/12 dots/mm)
4 MB flash memory and 8 MB DRAM memory
Up to 127/102mm(5"/4") per second print speed
user-friendly clamshell design
300 m long, max. OD 67 mm, 1“ core (ink coated outside)

microSD card reader for Flash memory expansion, up to 4 GB
  Product Brochure (PDF)







203/300 DPI
TA210/310
203/300 dpi (8/12 dots/mm)
4 MB flash memory and 8 MB DRAM memory
Up to 127/102mm(5"/4") per second print speed
user-friendly clamshell design
300 m long, max. OD 67 mm, 1“ core (ink coated outside)

microSD card reader for Flash memory expansion, up to 4 GB
  Product Brochure (PDF)







203/300/600 DPI
TX200/300/600
203/300/600 dpi (8/12/24 dots/mm)
128 MB flash memory and 128 MB DRAM memory
Up to 203/152/102mm(8"/6"/4") per second print speed
user-friendly clamshell design
300 m long, max. OD 67 mm, 1“ core (ink coated outside)

microSD card reader for Flash memory expansion, up to 32 GB
  Product Brochure (PDF)







203/300/600 DPI
MX240/340/640
203/300/600 dpi (8/12/24 dots/mm)
128 MB flash memory and 256 MB DRAM memory
Up to 356/305/152mm(14"/12"/6") per second print speed
user-friendly clamshell design
600 meter long, max. OD 90 mm,1“ core (ink coated outside/inside)

SD Flash memory card reader for Flash memory expansion, up to 32 GB
  Product Brochure (PDF)







Industrial BarCode Printers

203 DPI
TTP-243M SERIES
Up to 1MB Flash memory and 2MB DRAM memory
Up to 100mm (4.0") per second print speeds
LCD control panel (132 X 32 pixels)
Real-Time-Clock
Options include stand - alone printer controller, rotary cutter, and expandable flash memory cartridges.
  Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)

300 DPI
TTP- 344M SERIES
Up to 8 MB Flash memory expansion
300 dpi resolutions
Fast label throughput
Print head pressure adjustment knobs
Easily adjustable sensors
Bright LCD display control panel
Unique ribbon handler design allows the printer to use either outside or inside coated ribbon
Flexible firmware structure allows the printer to emulate popular printer languages
  Printer Specification (HTML) Product Brochure (PDF)


Loading Ribbon (WMV)

Loading Label (WMV)

203 DPI
ME240
Max. print width: 4“ (104 mm)
“Simple, Easy-to-use, and Affordable” Design
4MB Flash memory, 8MB SDRAM memory
203 dpi resolutions, up tp 6" per sec
Bright LCD display control panel (Factory options)
The mechanism supports up to a 450 meter ribbon length
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)

300 DPI
ME340
Max. print width: 4“ (104 mm)
“Simple, Easy-to-use, and Affordable” Design
4MB Flash memory, 8MB SDRAM memory
300 dpi resolutions, up tp 4" per sec
Bright LCD display control panel (Factory options)
The mechanism supports up to a 450 meter ribbon length
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)

203 DPI / 300 DPI
TTP-268M / 366M
Max. print width: 6.61“
“Simple, Easy-to-use, and Affordable” Design
8MB Flash memory, 32MB DRAM memory
203 / 300 dpi resolutions, up tp 8" / 6" per sec
SD flash memory card slot for flash memory expansion
Bright LCD display control panel
The mechanism supports up to a 450 meter ribbon length
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)

300 DPI
TTP-384M
Max. print width: 8.64“ (219.5 mm)
“Simple, Easy-to-use, and Affordable” Design
8MB Flash memory, 32MB DRAM memory
300 dpi resolutions, up tp 4" per sec
SD flash memory card slot for flash memory expansion
Bright LCD display control panel
The mechanism supports up to a 600 meter ribbon length
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)

203 DPI / 300 DPI
TTP-2410M Pro/ 346M Pro/ 246M Pro/ 344M Pro
THE NEW PRICE-PERFORMANCE LEADER
8MB Flash memory, 32MB DRAM memory
203 / 300 dpi resolutions, up tp 12" per sec
SD flash memory card slot for flash memory expansion
Higher 300 dpi resolutions are available in either factory versions or as a field upgrade.
The upgrade kit includes a new printhead with firmware and takes 30 minutes to install.
Bright LCD display control panel
The mechanism supports up to a 600 meter ribbon length and a full 8.2” OD media roll.
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)

203 DPI / 300 DPI
TTP-2410M / 346M / 246M Plus / 344M Plus
THE NEW PRICE-PERFORMANCE LEADER
8MB Flash memory, 32MB DRAM memory
203 / 300 dpi resolutions, up tp 12" per sec
SD flash memory card slot for flash memory expansion
Higher 300 dpi resolutions are available in either factory versions or as a field upgrade.
The upgrade kit includes a new printhead with firmware and takes 30 minutes to install.
Bright LCD display control panel
The mechanism supports up to a 600 meter ribbon length and a full 8.2” OD media roll.
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)



600 DPI
TTP-644M Pro
THE NEW PRICE-PERFORMANCE LEADER
8MB Flash memory, 32MB DRAM memory
600 dpi resolutions, 4" per sec
SD flash memory card slot for flash memory expansion
Bright LCD display control panel
The mechanism supports up to a 600 meter ribbon length and a full 8.2” OD media roll.
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)



600 DPI
TTP-644M
THE NEW PRICE-PERFORMANCE LEADER
8MB Flash memory, 32MB DRAM memory
600 dpi resolutions, 4" per sec
SD flash memory card slot for flash memory expansion
Bright LCD display control panel
The mechanism supports up to a 600 meter ribbon length and a full 8.2” OD media roll.
  Product Brochure (PDF)
   Loading Ribbon (WMV)  Loading Label (WMV)



203/300 DPI
TDP-225/324W
High resolution 300 dpi printer, also
available in 203 dpi resolutions
4MB Flash memory, 8MB DRAM memory
Save up to 50% on cost of wristbands
Designed to hold 6.5” OD wristbands
Front LCD display
High quality double-walled
clamshell design
  Product Brochure (PDF)




203 DPI
TDP-244
High quality double-walled
clamshell design
Easy media loading
Head open sensor
USB 2.0 connectivity
8 MB SDRAM, 4 MB Flash memory
Standard industry emulations right out of
the box including Eltron© and Zebra©
  Product Brochure (PDF)




203 DPI
TTP-244 Pro
200 MHz 32-bit RISC processor with 8
MB SDRAM, 4 MB Flash memory
Internally scalable true type fonts
TSPL-EZTM firmware emulates Eltron®
and Zebra® languages out of the box
Dual-motor gear driven design
300 meter (984’) ribbon supply on a
25.4 mm (1”) core (coated side out)
110 mm (4.3”) OD internal media supply,
optional external roll mount supports
214 mm (8.4”) OD label rolls on 76.2 mm
(3”) core
  Product Brochure (PDF)




203/300 DPI
TTP-244M PRO
4 MB Flash and 8 MB SDRAM
Up to 102 mm (4”) per second print speed
Label gap sensor, black mark sensor & ribbon
end sensor
Wide selection of options, including the
stand-alone keyboard display units, rotary
cutter, peel-off kit, Bluetooth module,
external 802.11 b/g/n wireless module
and LCD control panel
  Product Brochure (PDF)




203/300/600 DPI
TTP-2410MU SERIES
“Thermal Smart Control”™ print
technology produces cleanest, high
quality barcodes
Up to 356 mm (14”) per sec. print speed
128 MB Flash and 128 MB SDRAM
memory standard (Factory option for
512 MB Flash/ 256 MB SDRAM)
Heavy duty die-cast aluminum design
USB host interface for stand-alone application
  Product Brochure (PDF)




203/300 DPI
TC300
Perfect size – space saving design
4 MB Flash and 8 MB SDRAM,reader for Flash memory
expansion, up to 4 GB
102 mm (4”)/second
High quality double-walled clamshell design
Easy ribbon loading
  Product Brochure (PDF)




1200x1200 DPI
CPX4 Series
High quality ink sustains its performance properly over time
Excellent resolution of 1200 x 1200 dpi in vivid color,
crisp image and sharp text
TSC Color Management Program - Color Matching, allows for colors that are clear and accurate
The adjustable media is capable of printing small labels 25.4 mm (width) x 6 mm (length)
USB2.0, Ethernet
  Product Brochure (PDF)


Stand-alone Keyboard



KU-007 Plus
2MB flash memory and 256 KB SRAM memory
LCD display panel (graphic type)
Built-in BASIC-like language interpreter
Real-time-clock
Password locking for security
Built in EURO currency logo
6-digit floating-point calculatio
  Product Brochure (PDF)
